1

Nominal Capacity (Ltrs.) Maximum Pressure (Bar)
 5 1
 5 0.8
 20 0.7
 50 0.5
 100 0.4
 200 0.3
 300 0.2
 500 0.1

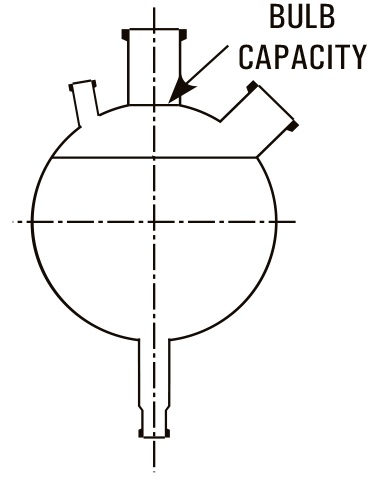

spherical vessels2

Nominal Capacity(Ltrs.) L L D DN T DN1 B DN2 P DN3 S
 5 425 425 223 50 85 25 125 25 50 40 75
 10 500 500 285 80 100 25 125 25 50 40 75
 20 575 575 350 100 100 25 125 25 50 40 75
 50 800 800 490 150 150 40 200 40 75 100 100
 100 900 900 600 225 150 40 200 40 75 100 100
 200 1100 1100 750 300 250 40 200 40 75 100 100
 300 1175 1175 860 400 250 50 175 50 75 100 100
 500 1400 1400 1000 450 250 50 200 50 75 150 165


3 SINGLE NECK SPHERICAL VESSEL

spherical vessels3

Cat.Ref. Nominal Capacity L DN
 VSA5 5 L 300 50
 VSA10 10 L 375 80
 VSA20 20 L 450 100
 VSA50 50 L 600 150
 VSA100 100 L 700 225
 VSA200 200 L 900 300
 VSA300 300 L 1000 400
 VSA500 500 L 1200 450

4 THREE NECK BOTTOM OUTLET SPHERICAL VESSELS

spherical vessels4

Cat.Ref. Nominal Capacity L DN DN1 DN2
 VSM5 5 L 450 50 25 25
 VSM10 10 L 500 80 25 25
 VSM20* 20 L 575 100 25 25
 VSM50* 50 L 800 150 40 40
 VSM100 100 L 900 225 40 40
 VSM200 200 L 1100 300 40 40
 VSM300 300 L 1175 400 50 50
 VSM500 500 L 1400 450 50 50

Get Quotes Now

5.FOUR NECK BOTTOM OUTLET SPHERICAL VESSELS

spherical vessels5

Cat.Ref. Nominal Capacity L DN DN1 DN2 DN3
 VSPL5 5 L 425 50 25 25 40
 VSPL10 10 L 500 80 25 25 40
 VSPL20 20 L 575 100 25 25 40
 VSPL50 50 L 800 150 40 40 100
 VSPL100 100 L 900 225 40 40 100
 VSPL200 200 L 1100 300 40 40 100
 VSPL300 300 L 1175 400 50 50 100
 VSPL500 500 L 1400 450 50 50 150

Get Quotes Now

FIVE NECK BOTTOM OUTLET SPHERICAL VESSEL

spherical vessels7

Cat.Ref. Nominal Capacity L DN DN1 DN2 DN3
 VS 5 5 L 425 50 25 25 40
 VS 10 10 L 500 80 25 25 40
 VS 20 20 L 575 100 25 25 40
 VS 50* 50 L 800 150 40 40 100
 VS 100* 100 L 900 225 40 40 100
 VS 200* 200 L 1100 300 40 40 100
 VS 300 300 L 1175 400 50 50 100
 VS 500 500 L 1400 450 50 50 100

SPHERICAL VESSELS WITH NOZZLE AT 90°

spherical vessels8

These vessels are used in Circulatory Boiler System and are to be supported on a vessel holder. More nozzles can be provided on the equator on request for special requirements.

Cat.Ref. Nominal Capacity L DN DN1 DN2 DN3
 VSD5 5 L 425 50 25 25 50
 VSD10 10 L 500 80 25 25 50
 VSD20 20 L 575 100 25 25 50
 VSD50 50 L 800 150 40 40 80
 VSD100 100 L 900 225 40 40 80
 VSD200 200 L 1100 300 40 40 150
 VSD300 300 L 1175 400 50 50 150
 VSD500 500 L 1400 450 50 50 150

SPHERICAL CYCLONES

spherical vessels9

Cyclones can be used for the separation of droplets and solids from gases and vapours. Cyclones are to be supported on a vessel holder. A dip pipe should be used on the top neck.

Cat. Ref. Nominal Capacity L DN DN1 DN2 DN3
 VSCY5 5 L 425 50 25 25 40
 VSCY10 10 L 500 80 25 25 40
 VSCY20 20 L 575 100 25 25 50
 VSCY50 50 L 800 150 40 40 50

ADDITION VESSELS

These vessels are provided with a short bottom outlet. These should be supported on a vessel holder/ holding ring.

spherical vessels10

Cat.Ref. Nominal Capacity L DN DN1
 VA5* 5 L 375 360 50
 VA10* 10 L 435 80 25
 VA20* 20 L 510 100 25
 VA50 50 L 675 150 40
 VA100 100 L 775 225 40
 VA200 200 L 975 300 40
 VA300 300 L 1075 400 50
 VA500 500 L 1400 450 50

SPHERICAL VESSELS WITH WIDE BOTTOM OUTLET

These vessels are generally used to fit immersion exchangers in the bottom. Special heating mantle or bath should be used if used with.

spherical vessels11

Cat.Ref. Nominal Capacity L DN DN1 DN2 DN3
 VSR50 50 L 750 150 150 40 100
 VSR100 100 L 850 225 150 40 100
 VSR200 200 L 1050 300 150 40 100
 VSE50 50 L 800 150 225 40 100
 VSE100 100 L 900 225 225 40 100
 VSE200 200 L 1100 300 225 40 100

VESSELS WITH BOTTOM OUTLET VALVE SEAT

spherical vessels14

To fit a bottom outlet valve (BAL type) all spherical and cylindrical vessels can be supplied with valve seat in bottom outlet. For this, Add a suffix “/B” to the catalogue reference of a vessel, for e.g. ‘VSL50’ should be mentioned as ‘VSL50/B’.

NOTES ON USE OF SPHERICAL VESSELS :

1. Generally, the centre nozzle, referred as DN in all types of vessels, is used for either stirrer fixing or, if stirrer is not fixed, for vapour outlet.

2. The bottom outlet, referred as DN1 in all types, is used for drain. However, in type VSR & VSE, it is also used for fixing immersion heat exchanger.

3. The small side nozzles, referred as DN2 in all types, are used (a) to fix thermometer pocket or

(b) to fix dip pipe for liquid inlet or,
(c) to fix sparger for gas purging or,
(d) to fix vacuum control or vent valve or,
(e) for solid addition.

4. The bigger side nozzle, referred as Dn3, is used for vapour outlet where stirrer is fixed on centre neck. It can also be used for cleaning in case centre neck is used for vapour outlet.

5. Vessels having long bottom outlet, viz VSM, VSPL, VSL, VS etc, can be supported in a heating mantle of heating bath. However, vessels having short bottom outlet, viz VSD, VSCY, VR, VA etc. are to be supported on a vessel holder only. In case of vessels upto 20L size, vessel holding rings can be used instead of vessel holder.

*marked items are available fast.
