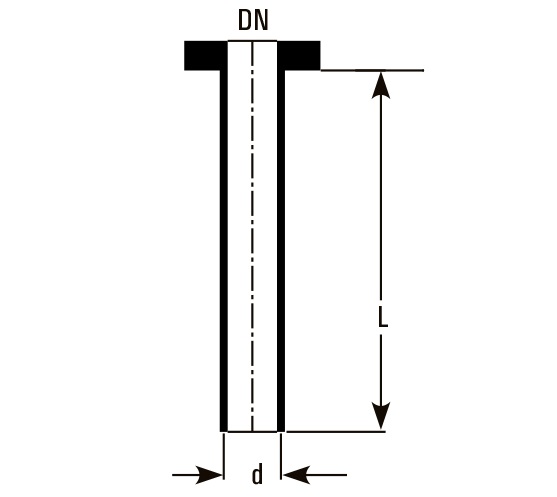

DIP PIPES

vessels accessories

Cat.Ref. For Vessel DN DN1 d L
 DP20/1* 20 L 25 25 12 300
 DP50/1.5* 50 L 40 25 19 400
 DP100/1.5* 100 L 40 25 19 500
 DP200/1.5* 200 L 40 25 19 600

SHORT DIP PIPES

Dip pipes are used as a liquid inlet for spherical vessels.

vessels accessories 1



Cat.Ref. DN DN1 d L L1
 DP1/1 25 25 12 100 100
 DP1.5/1 40 25 19 100 100
 DP1.5/1.5 40 40 19 100 100
 DP2/1 50 25 25 100 100
 DP2/1.5 50 40 25 100 100
 DP3/1.5 80 40 37 100 125
 DP4/1 100 25 25 100 150
 DP4/2 100 50 50 100 150

GAS SPARGERS

Gas spargers are used for gas feed/sparging in the vessels.

gas spargers



Cat.Ref. For Vessel DN DN1 d L No.of Holes
 SPG20/1 20 L 25 25 12 300 5x1mm
 SPG50/1.5 50 L 40 25 19 400 5x1mm
 SPG100/1.5 100 L 40 25 19 500 5x1mm
 SPG200/1.5 200 L 40 25 19 600 5x1mm

THERMOMETER POCKETS

Thermomete Pocket

Cat.Ref. For Vessel DN d L
 TP20/1* 20 L 25 12 300
 TP50/1.5* 50 L 40 19 400
 TP100/1.5* 100 L 40 19 500
 TP200/1.5 200 L 40 19 600

HEATING MANTLES

Heating Mantle is used for electrical heating of cylindrical as well as spherical vessels. Also available in flameproof & non-flame proof models. The flameproof heating mantle is similar to normal mantle but the main difference is in construction of heating elements. Heating elements is flameproof by covering it in magnesium oxide powder & SS metal tube. Heater terminal terminate in flameproof cold junction terminal enclosure. All electrical control like regulator, switch, indicating lamp, relay etc. fitted in flameproof switch encloser.

We can also provide flameproof digital temperature indicator cum controller with sensor.

Heating Mantles

Cat.Ref. Vessel Size D L Watts Circ-uits Supply Volts
 JMD5 5 L 320 190 750 1 230
 JMD10* 10 L 380 220 1200 2 230
 JMD20 20 L 485 285 2000 3 230
 JMD50 50 L 600 345 3700 3 415
 JMD100 100 L 790 470 6000 3 415
 JMD200 200 L 920 530 7500 3 415
Cat.Ref. Vessel Size D L Watts Circ-uits Supply Volts
 JMD5/F 5 L 330 200 600 1 230
 JMD10/F 10 L 440 220 1000 2 230
 JMD20/F 20 L 510 285 2000 3 230
 JMD50/F 50 L 610 350 3600 3 415
 JMD100/F 100 L 790 430 5200 3 415
 JMD 200/F 200 L 940 510 8400 3 415

HEATING BATHS

Heating baths are used for the electrical or steam heating of glass vessels.  Depending upon the temperature requirements, different types of thermic fluids or water can be used as heating media. Heating baths are provided with a pair of encased heaters with a controller box, a coil for passing the steam or cooling water, a cushioned vessel holding ring, a bottom outlet sealing arrangement, a lid and a threaded socket type inlets and outlets.

heating baths

Cat.Ref. Vessel Size d L Watts HTA Vessel HTA Coils
 SBH20 20 L 480 340 2×2000 0.25 0.4
 SBH50* 50 L 615 415 2×3000 0.5 0.6
 SBH100 100 L 720 535 2×4000 0.7 1
 SBH200 200 L 900 620 2×5000 1 1.5
 SBH300 300 L 1150 735 3×5000 1.85 2.5
 SBH500 500 L 1385 880 4×5000 2.5 4.0

COOLING BATH

cooling baths

Cooling baths are used  for cooling  the glass vessel with ice crystals. Cooling  Baths are provided  with a vessel holding ring, bottom outlet sealing arrangement and a lid.

Cat.Ref. Vessel Size d L
 BHC20 20 L 480 340
 BHC50 50 L 615 415
 BHC100 100 L 720 535
 BHC200 200 L 900 620

VESSEL HOLDERS

vessel holders

Vessel holders are made  of  cast  aluminum with a plaster lining shaped to fit the vessel. These are to be supported on 3 jacking bolts.

Cat.Ref. Vessel Size D d L
 VSS20* 20 L 325 230 100
 VSS50* 50 L 390 230 100
 VSS100 100 L 410 250 100
 VSS200 200 L 700 400 215

VESSEL HOLDING RINGS

These metal rings are wrapped with asbestos rope and are to be supported on two jacking bolts.

vessel holding rings

Cat.Ref. Vessel Size d L
 VRS2 2 L 100 15
 VRS5* 5 L 150 15
 VRS10* 10 L 215 15
