1. MJ Equipment Offer multipurpose pilot plant for chemical and pharmaceutical industries for process development, scale-up, process simulation and kiloscale cGMP production in batch and semi-batch operation.

The pilot plant used for chemical processing includes solid charging, liquid charging, reaction, heating / cooling, rectification, auto / manual reflux arrangement,


2. The multipurpose pilot plant designed in such a way that we can modify the same easily as per process requirement.

Pilot Plant Available with:

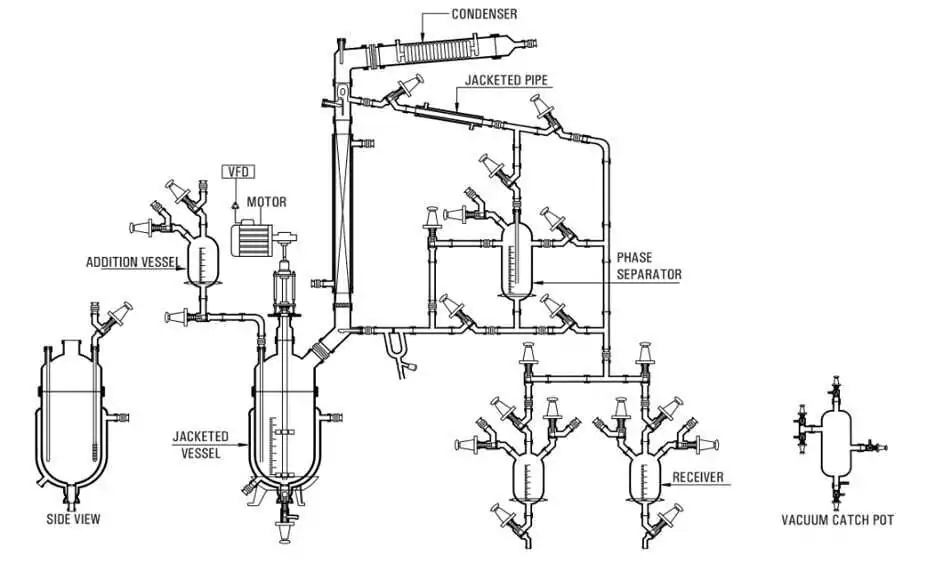

1. Jacketed full glass reactor/ Cylindrical full glass reactor with Oil heating cooling bath / Spherical full glass reactor with Oil heating cooling bath
2. Multipurpose glass distillation overhead
3. Stainless steel / MS epoxy coated / MS painted frame supporting
4. Flame proof / Non flame proof / cGMP / non GMP models available
5. Excellent corrosion resistant.
6. Temp. Controller.
7. Gas purging, solid charging / multi liquid addition.
8. Vacuum / exhaust piping
9. Additional feeders / receivers
10. Solid feeding

Unit
Cat. Ref.		 Reduction
Capacity		 Bath KW Addition
Vessel		 Vapour
Line		 Condenser
HTA m2		 Cooler
HTA m2		 Receiver Size
MPU 20 20 L 4.5 2 L 80 DN 0.35 0.10 2L, 5L
MPU 50 50 L 6.0 5 L 100 DN 0.50 0.20 5L, 10L
MPU 100 100 L 9.0 10 L 150 DN 1.50 0.35 10L, 20L
MPU 200 200 L 12.0 20 L 150 DL 1.50 0.35 10L, 20L
MPU 300 300 L 16.0 20 L 225 DL 2.50 0.50 20L, 20L
