HCl absorption columns are used for absorption of Hydrochloric gas, which statutorily are not permitted to vent into the atmosphere, and to produce the HCl acid.

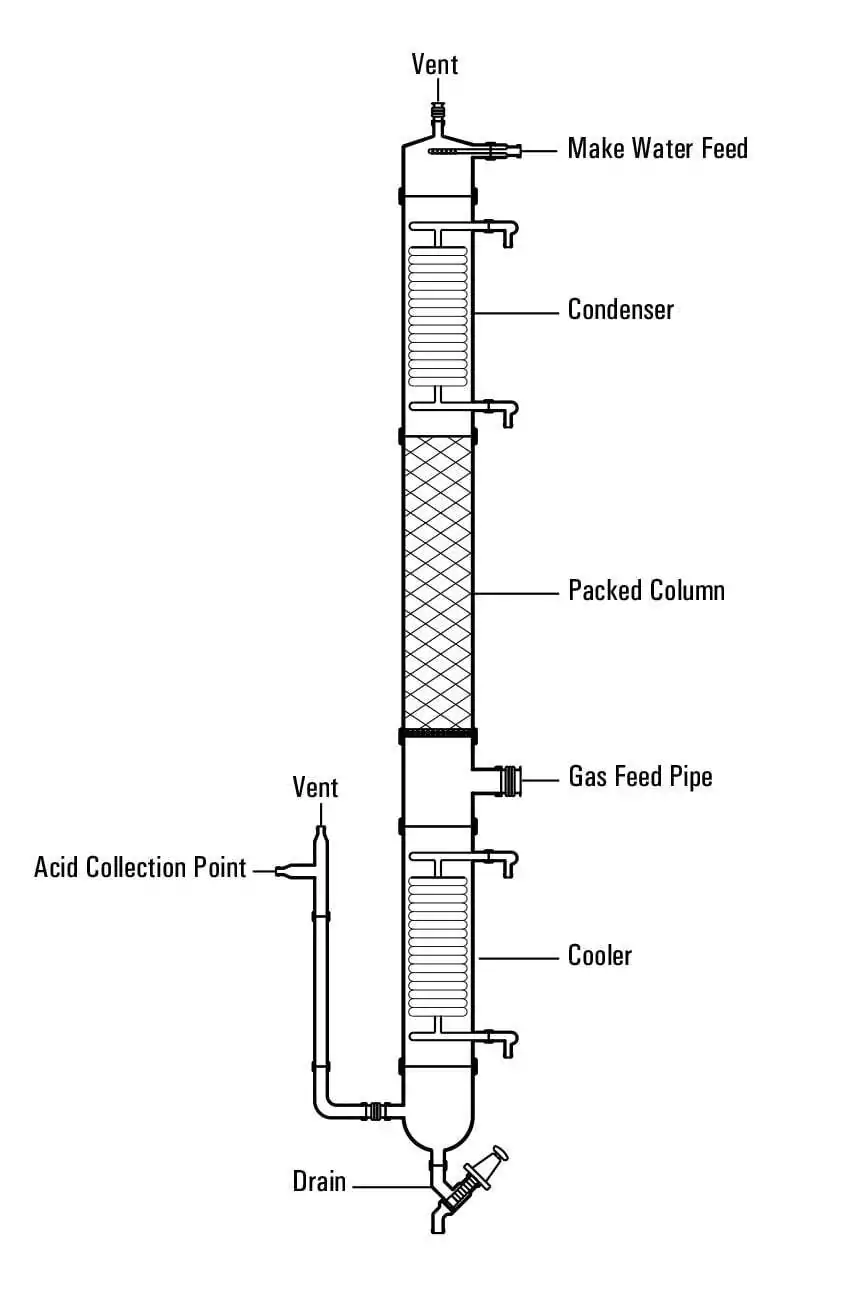

The column is constructed with a series of packed sections, a gas introduction point below that, a condenser on the top, and a cooler at the bottom.

Make water is sprayed from the top and acid is collected from the bottom.

HCl absorption columns are available in 80DN to 300DN diameter (for the gas rate 10Kgs/hr to 300Kg/hr approx..)

Unit Cat. Ref. Packed Column Condenser HTA M2 HCl Gas Rate
HCL3 80mm x 3mtr. 0.35 x 2 10 Kg / Hr.
HCL4 100mm x 4mtr. 0.5 x 2 20 Kg / Hr
HCL6 150mm x 4mtr. 1.5 x 2 60 Kg / Hr
HCL9 225mm x 4.5mtr. 2.5 x 2 150 Kg / Hr
HCL12 300mm x 4.5mtr. 4.0 x 2 300 Kg / Hr
