DIGITAL TEMPERATURE INDICATOR

These are generally used as headers of shell and tube heat exchangers and columns.

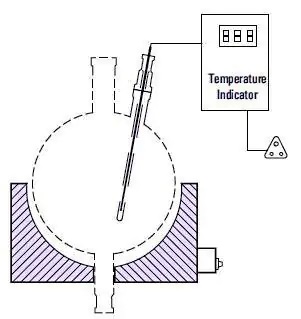

This instrument is mainly used to monitor the temperature of liquid in a glass vessel in a typical glass distillation unit.

The instrument consists of a Temperature indicator and a Resistance Temperature Detectors (RTD). The instrument works on 230V, 50Hz power supply. This displays the temperature in degree Centigrades in three and half digits of 12.5mm character height.

Cat. Ref. Vessel size RTD Length
 DTI20 20 400
 DTI50 50 500
 DTI100 100 600
 DTI200 200 700
