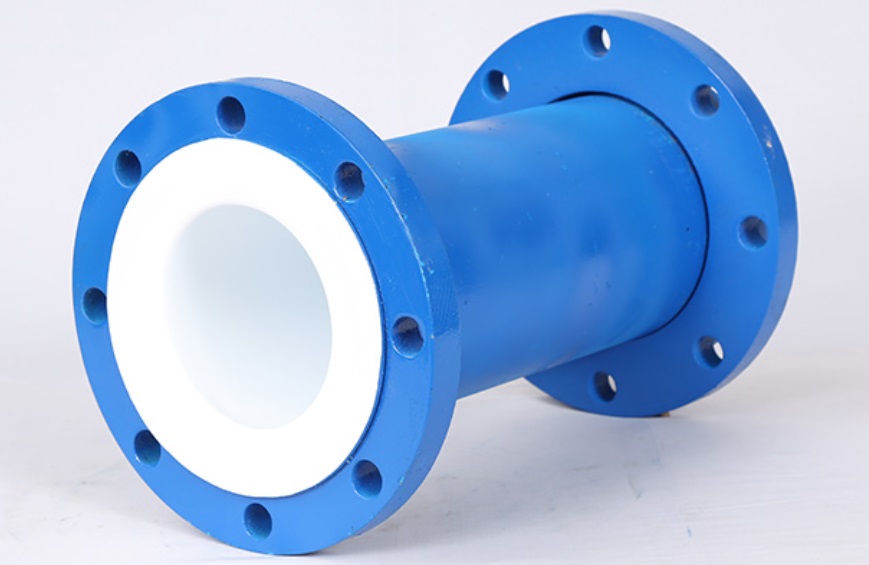

PP-PVDF-PTFE- LINED PIPE SPOOLS

BILL OF MATERIAL
Part No. Item Material Spec. / STD Dimensional STD
1 Seamless Pipe Carbon Steel ASTM A-106
GR B SCH 40 / 30		 ANSI B 36.10
2 Flange (Slip-On) Carbon Steel ASTM A-105 /
IS 2062 GR.A		 ANSI B 16.5
150 Class
3 Lap Collar Carbon Steel ASTM A-105 /
IS 2062 GR.A		 ASTM F1545:15a
4 Resin PTFE ASTM D 4895 ASTM F1545:15a
P.P. ASTM D 4 101
PVDF ASTM D 3222
HDPE ASTM D 3350
